Join Diameter Check

Checks every Join fastener’s head-side and tail-side hardware against the fastener diameter, by hardware type, and flags each one that does not fit.

Verification passing on NX 2606.5001 · 2026-10-03 · repo b9f63ea

NX with the verification assembly and the Join Diameter Check results — NX 2606.5001, run on the verification assembly: 35 fasteners, 15 pass, 14 fail, 4 could not check, 2 not applicable. The same split Check-Mate reports. Click to zoom.

What was asked

When a fastener is placed with the Join Fastener command, nothing checks that its washers, nuts, rings, spacers and blocks fit its diameter. A Check-Mate test should, by the hardware’s nomenclature: a nut equal to the fastener, everything else larger.

What it does

Finds every Join fastener (FAS object) in the work part and its components, including a Join container.
Reads each fastener’s pin and its head-side and tail-side hardware, and looks their diameters up in the same hardware library the Join dialog uses.
BLOCK, RING, SPACER and WASHER must be larger than the fastener; NUT must be equal. Anything it cannot measure is a warning, never a pass.
Runs as a Check-Mate test, with a Customize dialog, or as a plain NX journal.

36/36

real Join fasteners graded as the requirement says

36/36

the same, through Check-Mate itself

5/5

option controls hold

36/36

again after reopening the assembly from disk

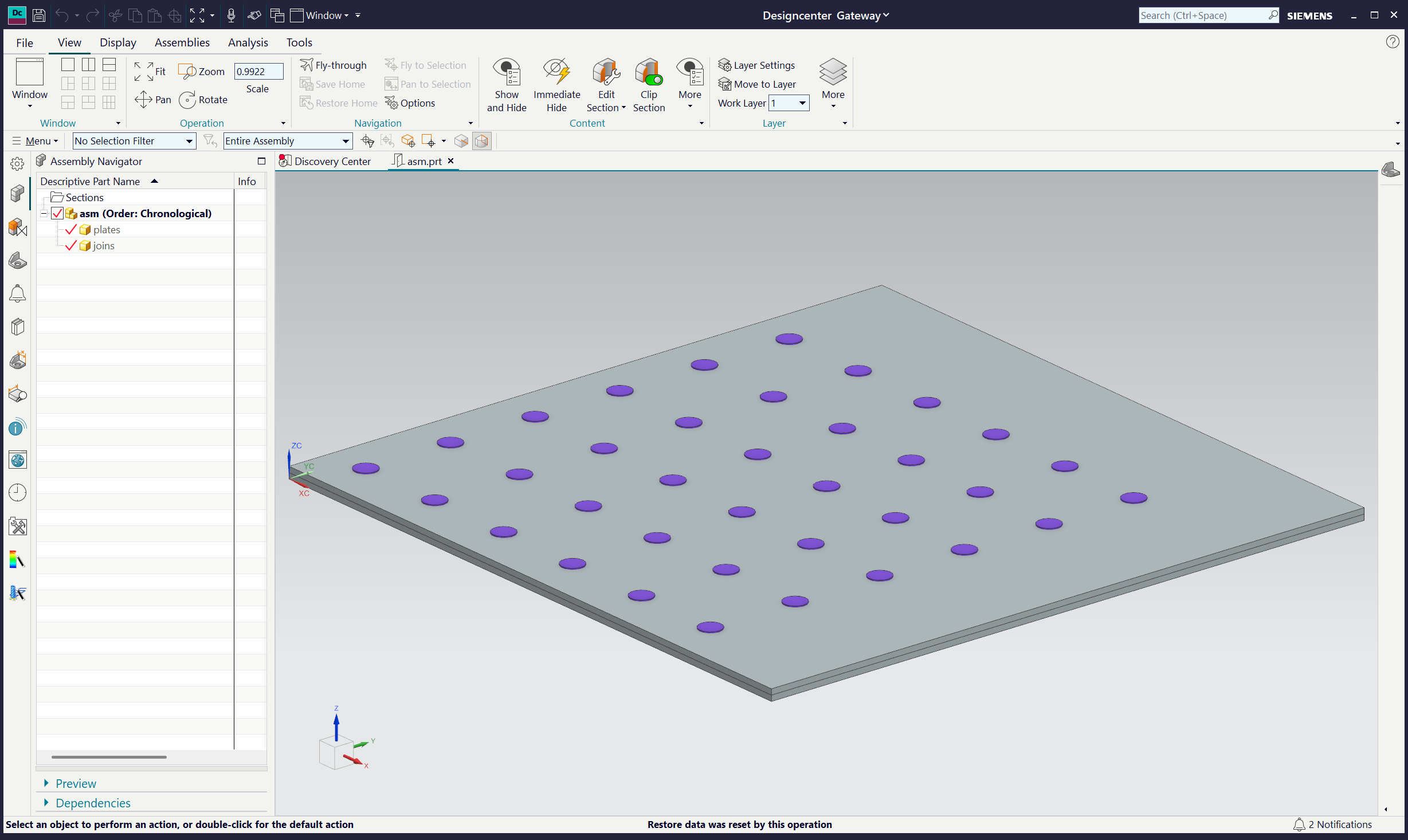

The verification assembly in NX: two plates and the Join fasteners — The verification assembly: a PLATES component and a JOINS container holding one Join fastener per case (the purple markers).

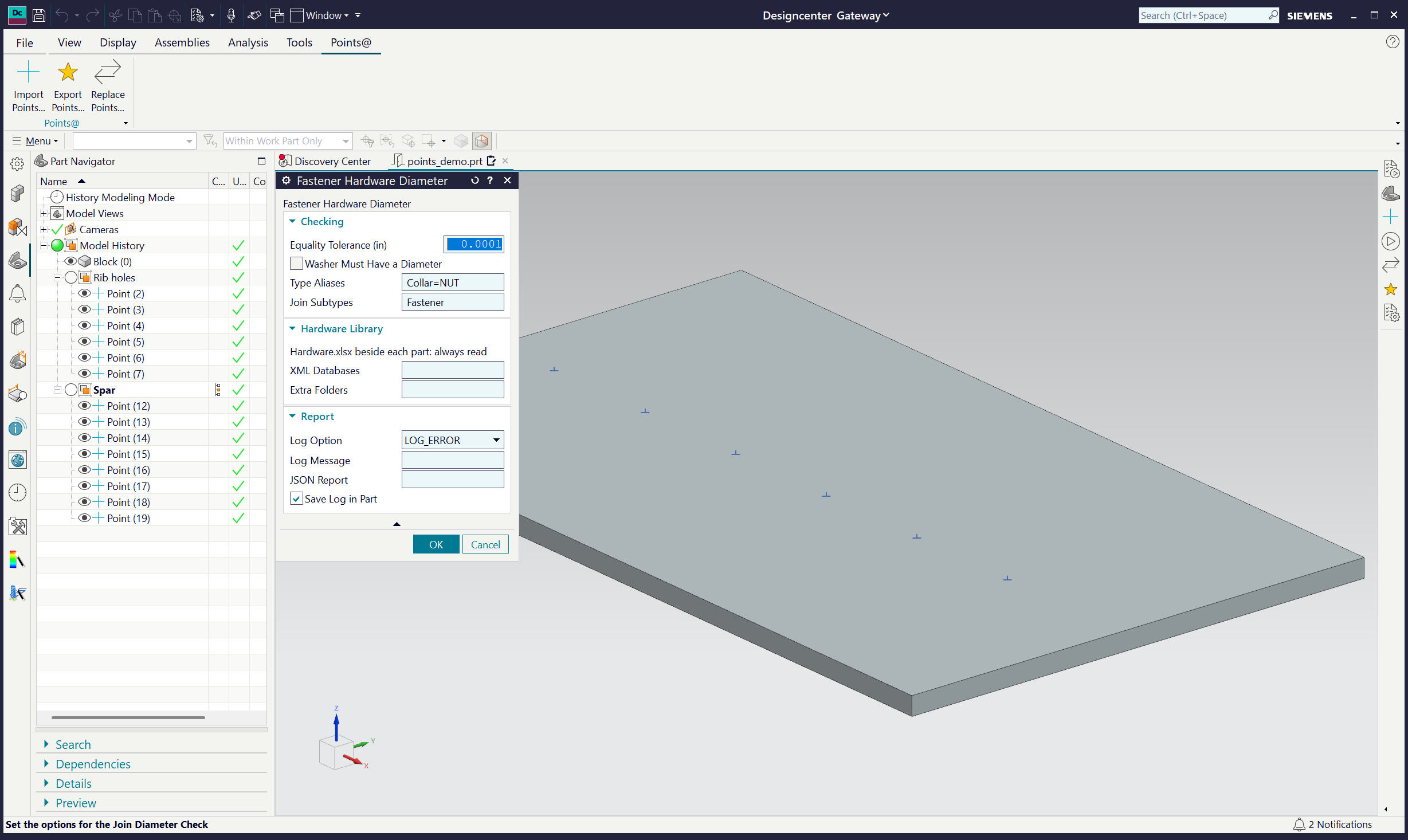

The Customize dialog opened from Check-Mate Set Up Tests — Check-Mate › Set Up Tests › Customize: tolerance, washer reading, type aliases, hardware library locations, logging.

How it works ›
